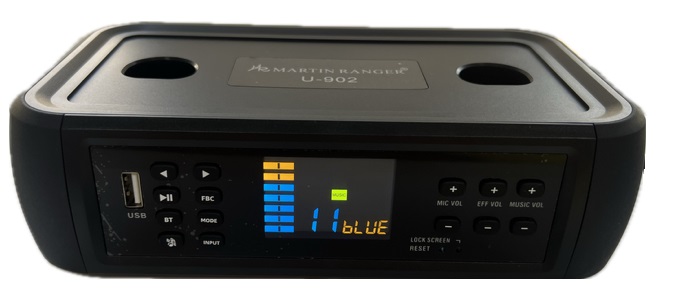

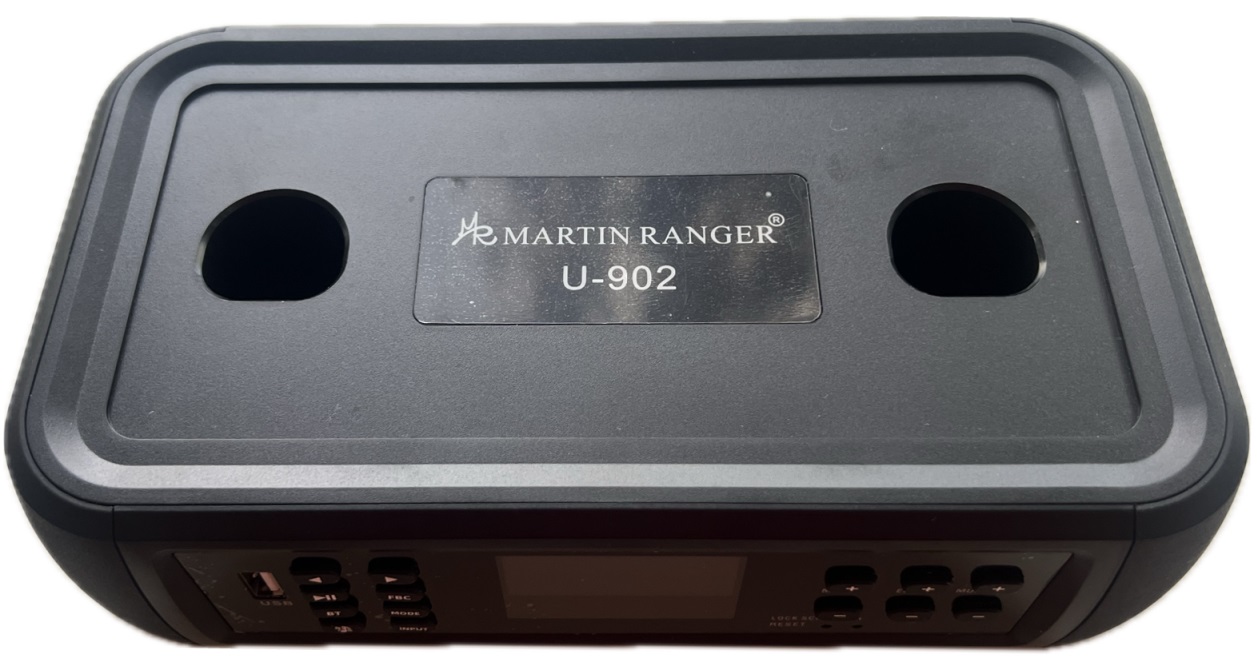

U-902


Professional Digital DSP Mixer

with Two Rechargeable Wireless Microphones System










The New Martin Ranger U-902 DSP Mixer is a perfect equipment for add on to any home karaoke set up. The U902 is included multisource audio signal mixing ability. It is built-in both Optical Input & Optical Output which can be connected from any Smart TV Digital Optical Output into the U902 Digital Optical Input for incoming sound signal. Of cause U902 can send sound together with Karaoke voice via Optical Output into any source like Sound Bar, Receiver, PA Speaker, and Amplifiers. U902 also have Aux RCA Input, Aux RCA Output, XLR Outputs (Left & Right), 1/4" Input, 1/4" Output, Bluetooth Function & Subwoofer Output.

The two Wireless Handhelds are built-in rechargeable powerful lithium battery can be used up to 6 ~ 8 Hour per full charge. They are specifically tuned to get the best out of your vocal performance and you have a microphone system that can handle any situation.

Suggested Retail Price: $ 599.00

Package Includes:

  • Professional DSP Mixer Receiver x 1

  • Power Adapter x 1

  • 1/4’’ Audio Cable x 1

  • 3.5mm to 2RCA Audio Cable x 1

  • USB to 2-C type Cables x 1

  • Rechargeable Wireless Handheld Microphones x 2

  • Antenna x 2

  • Microphone Protection Ring x 2

  • User Manual




Features:

  • Two UHF903MHz~926MHz microphone each with 50 channel selectable: The portable wireless mic. set features UHF audio transmission for unsurpassed performance with high signal over noise ratio for clear, noise & distortion-free, crisp vocal & excellent sound reproduction

  • Professional echo processor with professional grade DSP Reverb technology.

  • C type rechargeable lithium battery when  Fully charge it can be used for 6-8 hours.

  • BT Wireless-Compatible: The wireless handheld microphone has wireless streaming ability that works with any smart devices

  • Individual Volume Control: Music, Microphone, and Effect

  • The protective slots on the receiver used to secure the wireless microphone and also serves as an anti-slip, anti-collision. It can prevent the microphone from rolling, reduce wear and tear on the body, and provide cushioning protection when placed

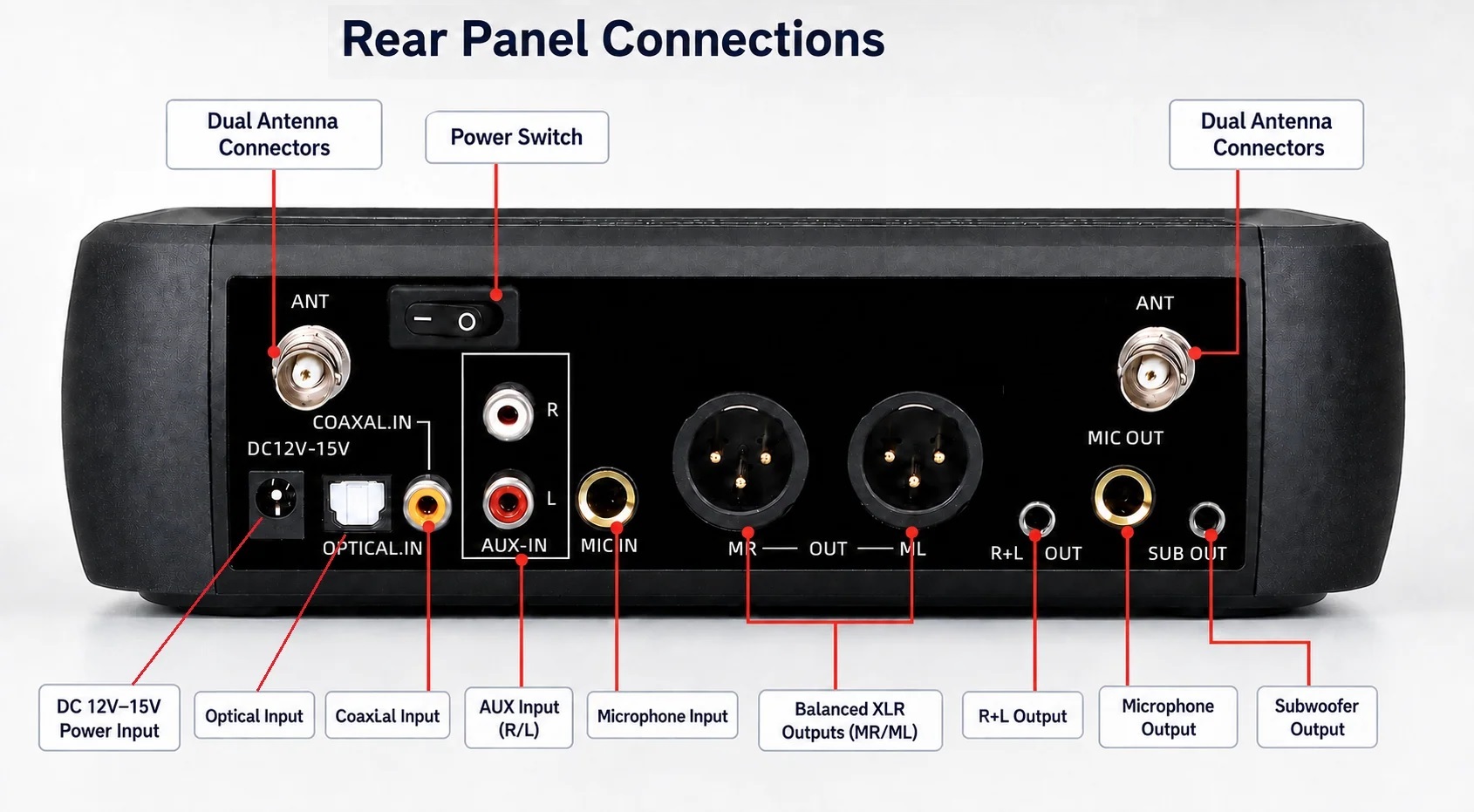

  • Mixer Inputs: The audio mixer receiver has USB (play Mp3 music) Coaxial, Optical, RCA 6.3 mono and B/T

  • Mixer Outputs: 2 XLR, 3.5 stereo, 6.3 mono and 3.5 stereo and SUB woofer

Specifications:



Receiver:

  • UHF 50 selectable Frequency: UHF903.7MHz~926.4MHz

  • Receiver Input Voltage : DC 12V

  • Music Channel Gain : Max. 12dB

  • Signal To Noise Ratio: >80dB

  • Frequency Response : 50Hz to 15kHz

  • Channel Interference Ratio: >80dB

  • Audio Output : 0~400mV

  • Sensitivity: < 5dBu

  • Base Receiver Dimensions (L x W x H): 8.5’’ x 5.1’’ x 2.7’’

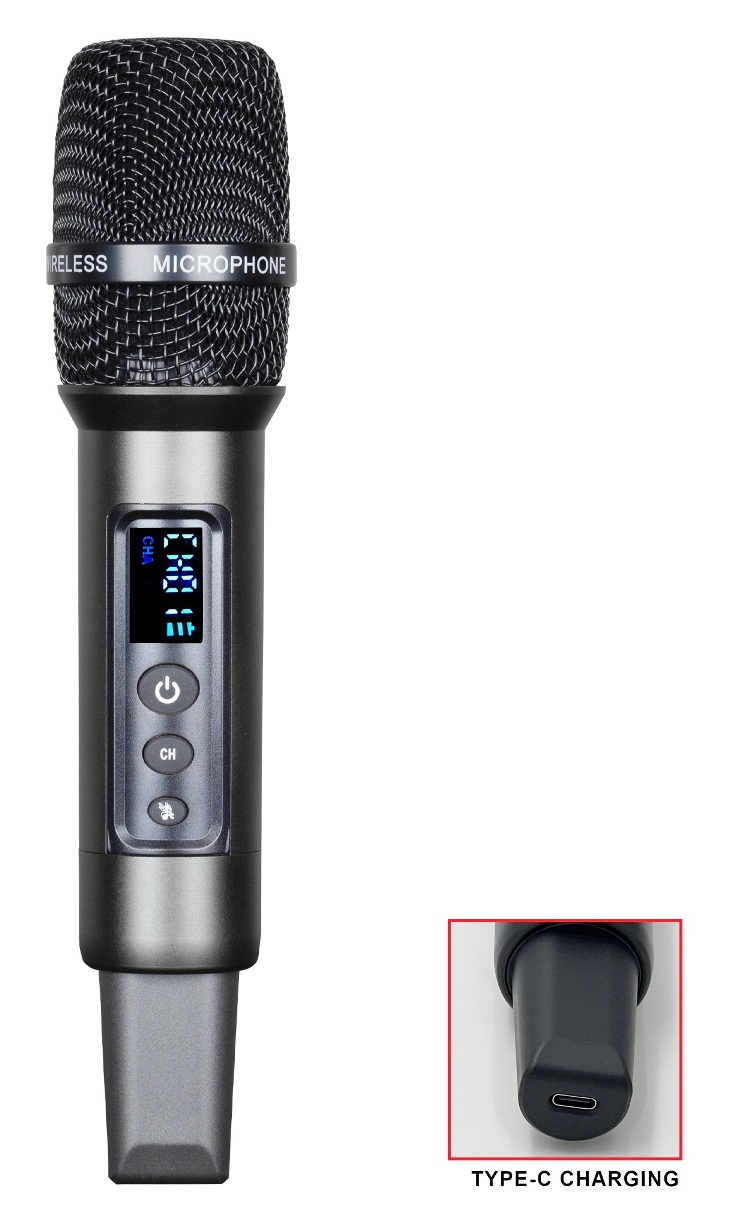

Handheld Microphone

  • Rated Power: 10mW

  • Modulate mode: FM

  • Microphone pickup head : Moving loop type.

  • Modulate Degree: > 25KHz

  • Harmonic Suppression: < 40dB

  • Built-in Lithium Battery Charging Time about 2-3 Hours

  • Working Hours: 5-7hrs



USER MANUEL (PDF)
